Walk onto most UAE construction sites and you will hear PPR and PPRCT used almost interchangeably, both green pipes, both heat-fused, both rated for hot water. But the difference between them is not a marketing label. It is a measurable change in the molecular structure of the polypropylene itself, one that translates into roughly 25% higher pressure capability at the same wall thickness and operating temperature. This article looks at what beta-crystalline modification actually means, why it matters for pressure ratings, and where that difference becomes critical on real projects.
PP-R and PP-RCT Are Different Raw Materials, Not Different Brands
It is easy to assume that PPR pipes and PPRCT pipes are the same polypropylene resin with different marketing names attached. They are not. PP-R (polypropylene random copolymer) and PP-RCT (polypropylene random copolymer with modified crystallinity and temperature resistance) are classified as distinct material grades under international standards, including ASTM F2389 and EN ISO 15874.
The chemical building blocks are similar in both cases, propylene copolymerized with a small percentage of another alpha-olefin comonomer. What differs is how the polymer chains arrange themselves as the material solidifies during manufacturing, and that arrangement is the entire story behind why PPRCT pipe in the UAE carries higher pressure ratings than standard PPR at the same wall thickness.
What “Crystalline Structure” Actually Means in a Pipe Wall
Polypropylene, like many thermoplastics, is not a uniform amorphous material. As it cools from a molten state during extrusion, regions of the polymer chains arrange themselves into ordered, crystalline structures called spherulites, while other regions remain amorphous. The size, shape, and arrangement of these crystalline regions directly affect the mechanical properties of the finished pipe.

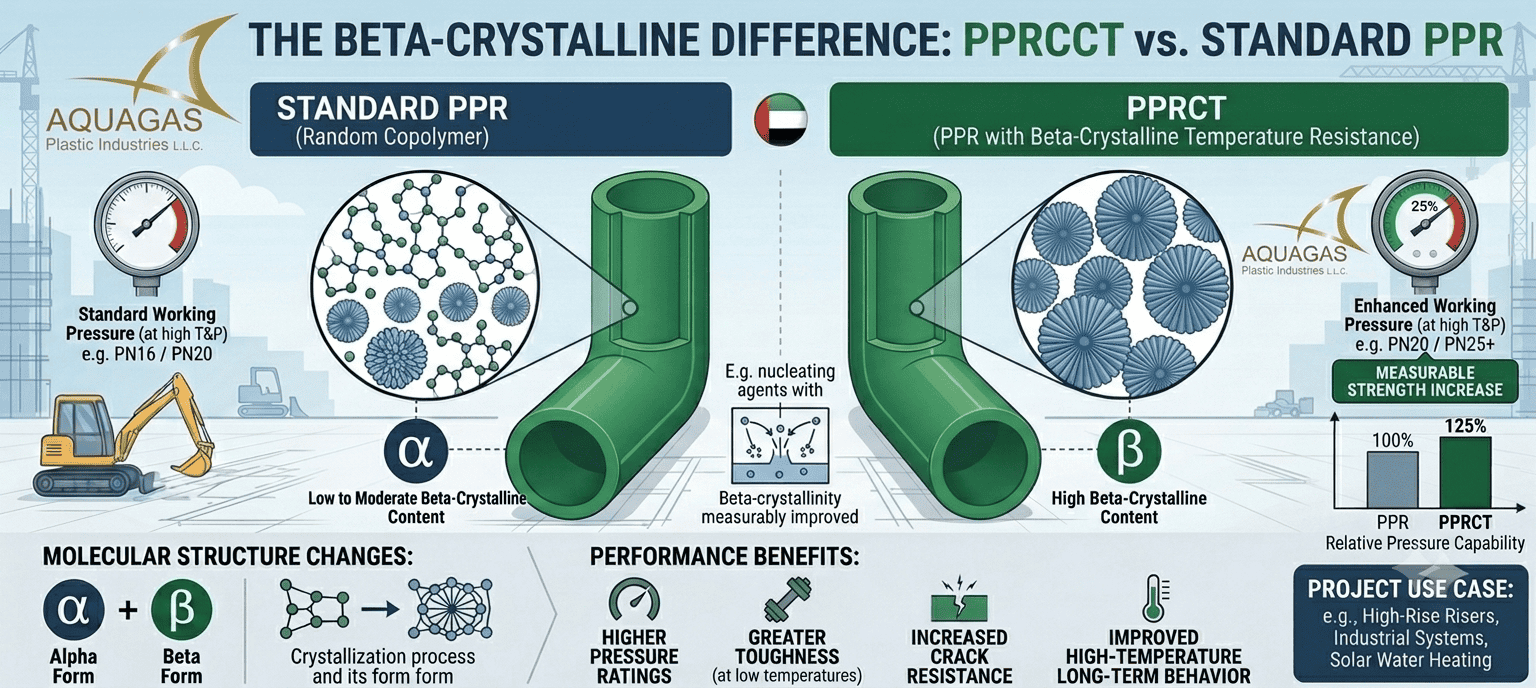

Standard PP-R pipes typically forms what is known as an alpha-phase crystalline structure, an irregular crystalline arrangement that has been the industry standard for decades and performs reliably within its rated temperature and pressure range.
PP-RCT materials are engineered using a beta-nucleating agent during manufacturing, which encourages the polymer to crystallize in a different form, a trigonal beta-phase crystal structure with a finer, more uniform spherulite size. This is not a coating or an additive layer; it is a change to how the material itself solidifies at a microscopic level throughout the entire pipe wall.
Why Beta-Phase Crystallinity Translates to Higher Pressure Ratings
The practical consequence of this finer, more uniform crystalline structure is improved long-term mechanical performance, specifically creep resistance and fatigue strength under sustained stress.
When a pipe operates under pressure for years, the polymer is under constant mechanical load. Standard PP-R’s alpha-phase structure has known long-term strength limits at elevated temperatures, limits that have been well-documented through decades of testing under ISO 15874. The finer beta-phase structure in PP-RCT resists the slow deformation (creep) that occurs under sustained pressure and temperature more effectively, because the more uniform crystalline regions distribute mechanical stress more evenly throughout the material.
According to ISO 15874, at a given service temperature and 50-year design life, PP-RCT materials achieve a Minimum Required Strength (MRS) classification that supports PN 20/25 pressure ratings, compared to lower MRS classifications for standard PP-R materials under the same conditions. In practical terms, this is frequently cited as approximately a 25% higher pressure rating for PP-RCT compared to PP-R at the same wall thickness and operating temperature.
What This Means for Wall Thickness and Inner Diameter
Because PP-RCT can achieve a higher pressure rating at a given wall thickness than PP-R, it opens up a design option that does not exist with standard PPR fitting: achieving the same pressure rating with a thinner wall, which results in a larger inner diameter for the same nominal pipe size.
A larger inner diameter means lower flow velocity for a given flow rate, which translates to reduced friction loss and lower pumping energy requirements across the system’s lifetime. For large-scale UAE developments where pumping costs accumulate significantly over a 50-year service life, this is not a marginal consideration; it is a measurable operating cost difference built into the choice of pipe material before a single fitting is installed.
To engineer these long-term efficiencies into your design, you can Specify High-Pressure PPRCT Pipes for your building’s riser systems.
Chlorinated Water Resistance: A Less-Discussed but Important Difference
UAE potable water systems, like most municipal and desalinated water networks, contain residual chlorine for disinfection. Independent research comparing alpha-phase and beta-nucleated polypropylene under accelerated aging in chlorinated water at elevated temperature found that the beta-nucleated material showed approximately 30% longer time-to-embrittlement compared to the alpha-phase material under the same conditions, along with better fatigue crack growth resistance in both chlorinated and non-chlorinated water.
This matters specifically for hot water systems, since the combination of elevated temperature and chlorine exposure accelerates polymer aging more than either factor alone. For UAE hot water networks running continuously at 60-95°C with chlorinated water, this beta-phase advantage in chlorine resistance is directly relevant to long-term service life, beyond the headline pressure rating numbers.
PPR vs PPRCT: Material Comparison at a Glance
| Property | Standard PP-R | PP-RCT |
| Crystalline structure | Alpha-phase, irregular | Beta-phase, fine, uniform spherulites |
| Relative pressure rating at same wall thickness | Baseline | Approximately 25% higher |
| MRS classification (per ISO 15874, 50-year/70°C) | Lower MRS class | Supports PN 20/25 |
| Creep resistance under sustained load | Standard | Improved |
| Resistance to chlorinated water aging | Standard | Approximately 30% longer time-to-embrittlement in test conditions |
| Continuous temperature rating | Up to 95°C | Up to 95°C |
| Jointing method | Heat fusion welding | Heat fusion welding |
| Typical UAE application | General hot/cold water distribution | High-pressure, high-temperature, solar, underfloor, industrial |
Where the Difference Becomes Critical on UAE Projects
For a low-rise villa with moderate pressure and standard domestic hot water temperatures, the difference between PP-R and PP-RCT may have limited practical impact on day-to-day performance; both materials are certified to the same dimensional and basic hot water standards.
The difference becomes more significant in three scenarios common across UAE construction: high-rise riser systems where static head pressure compounds with system pressure near the base of the building, solar water heating loops where stagnation temperatures push the material toward the upper end of its rated range, and industrial process water systems where both elevated pressure and elevated temperature are sustained continuously rather than intermittently.
In each of these cases, the additional pressure margin and improved long-term creep and chlorine resistance that PP-RCT provides is not a marginal upgrade; it directly affects the safety factor the system operates within over its 50-year design life.
Frequently Asked Questions
Is the PPRCT pipe physically different to look at compared to the PPR pipe?
Not necessarily in appearance. Both are typically green polypropylene pipes that look visually similar. The difference is in the internal crystalline structure of the polymer, which cannot be identified visually and is verified through material certification and testing rather than appearance.
Can PPRCT and PPR pipes be joined together using heat fusion?
Both materials use the same heat fusion welding jointing method and are generally compatible for fusion at a basic level since both are polypropylene-based. However, project specifications typically call for material consistency across a system, particularly in higher-pressure or higher-temperature sections, to ensure the pressure rating of the weakest material in the system does not become the limiting factor.
Does PPRCT cost significantly more than standard PPR pipe?
PPRCT typically carries a price premium over standard Multilayer PPR due to the more advanced raw material and manufacturing process. However, because PPRCT can achieve the same pressure rating with a thinner wall, the material cost difference per meter is often smaller than the percentage difference in raw material cost would suggest, and the larger inner diameter can offer pumping efficiency benefits over the system’s lifetime.
Is PPRCT required by UAE building codes, or is it optional?
PPRCT is not universally mandated, but it is increasingly specified for high-rise riser systems, solar thermal loops, and industrial applications where the pressure and temperature combination exceeds what is comfortably handled by standard PP-R within typical safety margins. Specification ultimately depends on the project’s MEP design and the consultant’s risk tolerance for the specific application.
How is PPRCT’s crystalline structure verified during manufacturing?
Beta-phase crystallinity is verified through laboratory testing methods such as differential scanning calorimetry (DSC), which measures the crystalline phase composition of the polymer. Certified PPRCT manufacturers maintain documented quality control processes that include this type of material verification as part of batch testing.
Does the higher pressure rating of PPRCT mean it is “overkill” for residential projects?
Not necessarily overkill, but it does mean the choice between PPR and PPRCT for a standard residential project often comes down to project specification preferences and budget rather than a strict performance necessity. For residential projects with higher-rise elements, solar water heating, or underfloor heating, PPRCT’s additional margin becomes more directly relevant to the specific application rather than a general upgrade.
Final Thoughts
The difference between PPR and PPRCT is not cosmetic, and it is not just a number on a datasheet. It comes down to how the polypropylene itself solidifies at a molecular level, alpha-phase versus beta-phase crystallinity, and that structural difference translates into measurable improvements in pressure rating, creep resistance, and chlorinated water aging performance. For UAE projects involving high-rise risers, solar thermal systems, underfloor heating, or industrial pressure networks, understanding this material-level difference is what separates a pipe specification that meets minimum requirements from one that provides genuine long-term margin.
